Shaped stick pack solution for pharmaceutical and cosmetic products
  • Multilane packaging equipment for packaging food, cosmetic and pharmaceutical products into a stick pack with shape

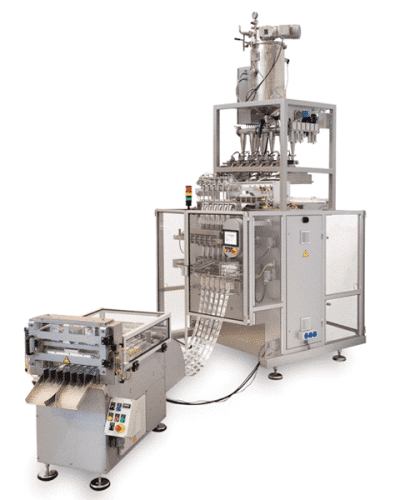

Multilane machine specially designed for producing shaped stick packs, an excellent tool for brand differentiation.



The an650-SH, for shaped stick pack, offers a friendly opening allowing end users to squeeze and dispense all the content easily. Our lap seal on the side, makes the back surface of the stick fully printable for promotional or instruction purposes. The best choice for product differentiation and sampling for food, cosmetics and pharmaceutical industries.



More Information

You may be also interested on these packaging alternatives and types of complete lines.



Shaped stick pack
Shaped stick pack
Shaped stick pack
Shaped stick pack
Shaped stick pack
Shaped stick pack

Main features

  • 4-16 lanes
  • Special horizontal cut with shaped form.
  • Friendly opening of the stick pack allowing end users to squeeze and dispense all the content easily.
  • Side sealed offering fully printable surface for instructions/promotional purposes.
  • High performance, accuracy and reliability: OEE > 95%.
  • User friendly.
  • Systems for transfer to secondary packaging equipment.
  • Free access to main components for cleaning (Tool-free).



Downtime reduction

  • Centralised lubrication.
  • HMI with multiple recipes – immediate recall of each format parameters.
  • Easy and fast film replacement using film splicer.
  • Centralised electric, pneumatic and mechanical systems.



Low operational costs

Savings on:

  • Space (reduced footprint).
  • Material (42% in film).
  • Low maintenance requirements.



Additional items

  • Filling and feeding systems.
  • Quality control systems.
  • Coding systems.
  • Cleaning and sterilisation systems.

Technical table

Concept Data
Max. reel width 650 mm
Lanes number 2-10 lanes
Stickpack width range 25-80 mm
Max. stickpack length 180 mm*
Reel shaft 76 mm
Ø Reel max 450 mm
Max. production 600 spm
Standard power consumption 5 kW
Standard air consumption (l./min) 380 l.



*Other dimensions under request.



Optimal implementation and performance.

Overall Equipment Efficiency (OEE) >95%

Downtime reduction due to user friendly and simple design, low maintenance and easy access.

Personalised Customer Service; following up and supporting with local technicians or ARANOW staff. CARE – DELIVER - SATISFY
